Description

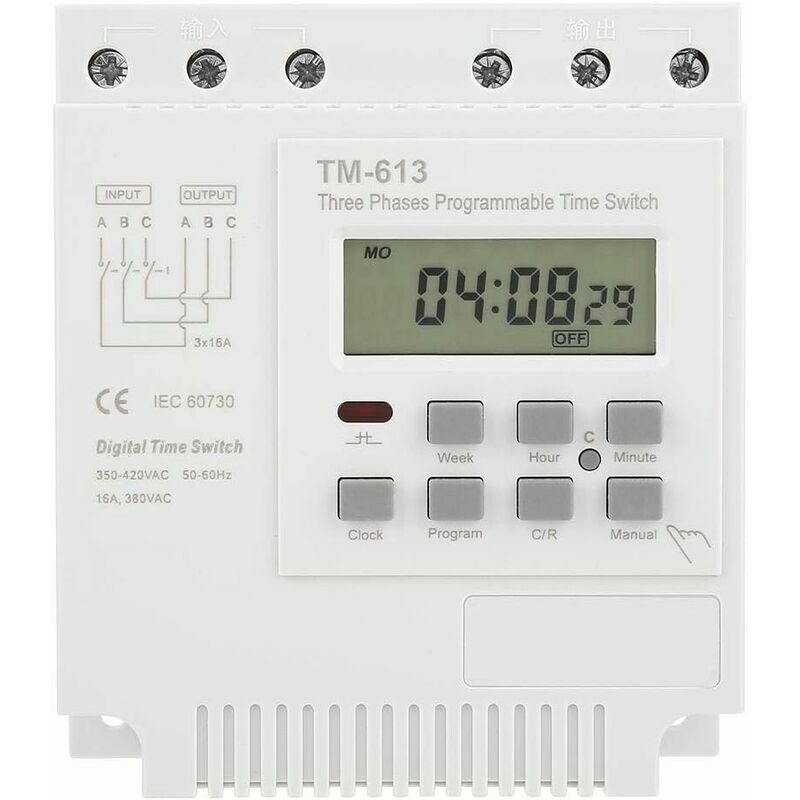

General description This TM-163 Programmable Timer is a high-performance timer switch designed for three-phase applications. It features a three-wire input and output, eliminating the need for a neutral wire connection. With a maximum power capacity of 4 kW, it is suitable for various equipment including water pumps, fish pond aerators, rice cookers, water heaters, neon lights, and exhaust fans. Technical specifications Model: DDS528 Rated voltage: 230 VAC Rated current: 5-32 A Load capacity: 0.05 Ib – Imax (direct access type) or 0.02 Ib – Imax (transformer access) Data display: LCD display Power indicator: green light Current pulse indicator: red light (lights up for about 80ms when there is a strobe signal) Mounting method: 35mm DIN rail Working environment: -25~55°C, ≤ 95% RH Size: 78.5 x 36.5 mm / 3.09 x 1.44 inch Package weight: about 131 g Usage Programmable with a total of 17 on/off settings. Each setting can be adjusted at least one minute apart. Maximum duration of 168 hours
