Description

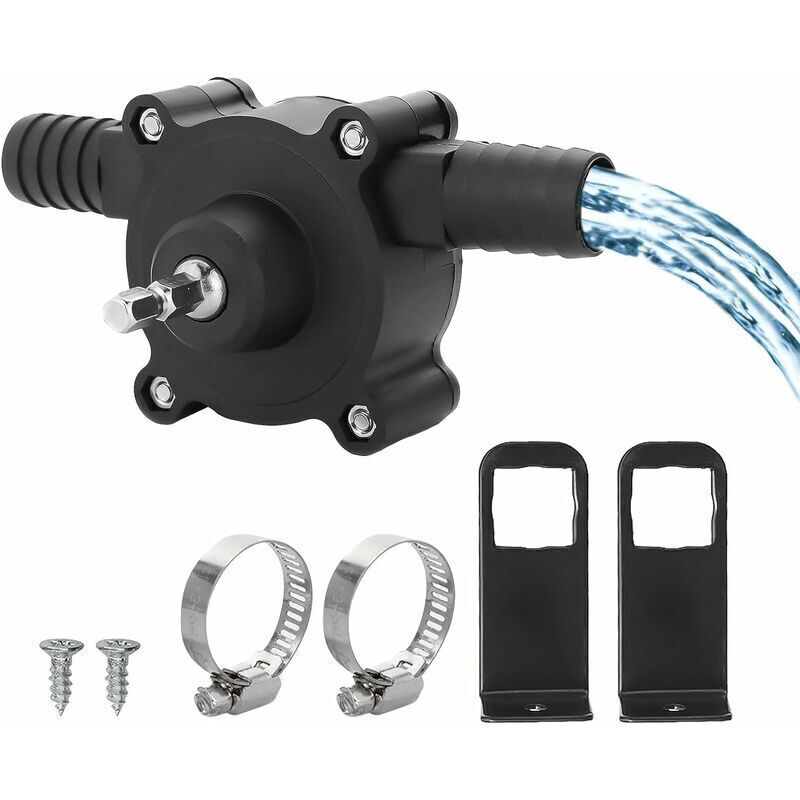

Specifications: Color: Note: Plastic specifications Product size: 126 x 63 mm Pump shaft: 6.35 mm hexagonal shaft Water inlet /outlet Inner diameter: 16 mm Water inlet /outlet outer diameter: 19 mm Operating temperature: 5 ° C-49 ° C : Package included 1 x drilling pump 2 x clamping collars 2 x support 2 x screws 1 x user manual in English Size for the drilling pump: . In order to achieve optimal starting and long life, apply a small amount of lubricating oil in the pump inlet before use and rinse with water after each use. 2. Make sure the intake hose is tight and as short as possible. The inlet pipe shall not exceed 9 feet (2.75 m). 3. When pumping abrasive fluids or liquids containing solids, please install a cap on the inlet to extend the life of the pump. 4. It is recommended to mount the pump on a surface for safety and ease of use reasons. 5. Mount and start the drill. Monitor the inlet tubing to ensure fluid is sucked into the pump in 15 to 20 seconds. Otherwise, verify that
