Description

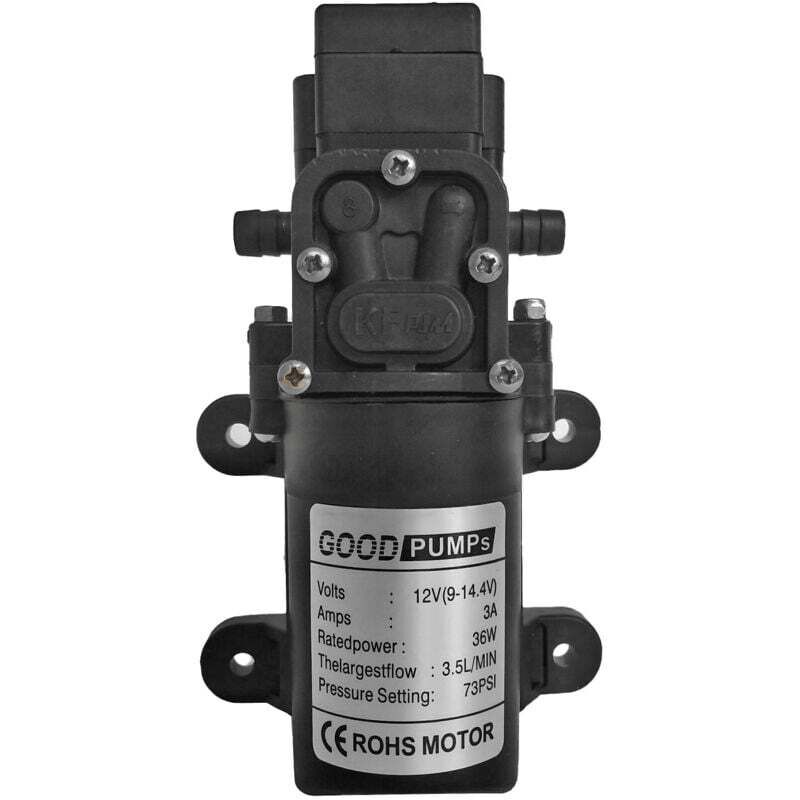

General Description The high-pressure diaphragm pump is an essential piece of equipment for various applications, offering superior efficiency thanks to its 1.8 mm nozzle. Its design allows it to reach a pressure of up to 4 kg, while remaining energy efficient. Technical Specifications Item Type: Diaphragm Pump Body Material: Engineering Plastic External Size: Approx. 160 x 100 x 60 mm Insertion Tube Diameter: Approx. 10 mm Gross Weight: Approx. 700 g Voltage: 12V Current: Between 1.4 and 3A Protection Pressure: 0.6 MPa General Pressure: 0.3-0.4 MPa or more Open Flow Rate: Between 2 and 3.5 L/min or more Suction Range: 1 m; Lifting range: up to 30 m Compatibility and accessories This pump is versatile and can be used in various applications such as motorhomes, car washes, and garden irrigation. Installation To install the pump, be sure to follow the manufacturer’s instructions regarding electrical connection and hose fitting to ensure optimal operation. Use The diaphragm pump is
